Tip EB

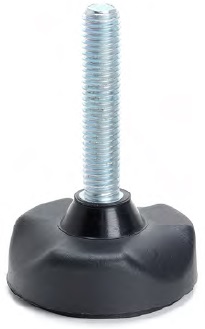

Izravnalni gumeni blažilec s pocinkanim zatičem. TIP EB
Odporen na topila, olja, maščobe. Guma je odporna na drsenje.
|

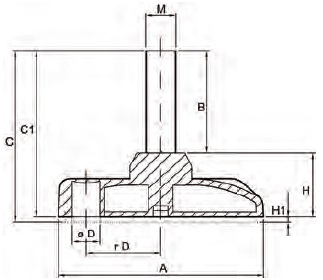

Koda |
A (mm) |
M
|
B (mm) |
H (mm) |
H1 (mm) |
C (mm) |
C1 (mm) |
D (mm) |
rD |
Max Obremenitev |
| A3EB40/0630 |
40 |
06MA |
30 |
23 |
2 |
55 |
53 |
– |
– |
500 |
| A3EB40/0650 |
40 |
06MA |
50 |
23 |
2 |
75 |
73 |
– |
– |
500 |
| A3EB40/0830 |
40 |
08MA |
30 |
23 |
2 |
55 |
53 |
– |
– |
500 |
| A3EB40/0840 |
40 |
08MA |
40 |
23 |
2 |
65 |
63 |
– |
– |
500 |
| A3EB40/0850 |
40 |
08MA |
50 |
23 |
2 |
75 |
73 |
– |
– |
500 |
| A3EB40/1030 |
40 |
10MA |
30 |
23 |
2 |
55 |
53 |
– |
– |
500 |
| A3EB40/1050 |
40 |
10MA |
50 |
23 |
2 |
75 |
73 |
– |
– |
500 |
| A3EB50/0650 |
50 |
06MA |
50 |
23 |
2 |
75 |
73 |
6 |
17 |
500 |
| A3EB50/0830 |
50 |
08MA |
30 |
23 |
2 |
55 |
53 |
6 |
17 |
500 |
| A3EB50/0850 |
50 |
08MA |
50 |
23 |
2 |
75 |
73 |
6 |
17 |
500 |
| A3EB50/1030 |
50 |
10MA |
30 |
23 |
2 |
55 |
53 |
6 |
17 |
500 |
| A3EB50/1050 |
50 |
10MA |
50 |
23 |
2 |
75 |
73 |
6 |
17 |
500 |
| A3EB80/1030 |
80 |
10MA |
30 |
25 |
2 |
57 |
55 |
10 |
29 |
1000 |
| A3EB80/1050 |
80 |
10MA |
50 |
25 |
2 |
77 |
75 |
10 |
29 |
1000 |
| A3EB80/1230 |
80 |
12MA |
30 |
25 |
2 |
57 |
55 |
10 |
29 |
1000A3 |
| A3EB80/1250 |
80 |
12MA |
50 |
25 |
2 |
77 |
75 |
10 |
29 |
1000 |
